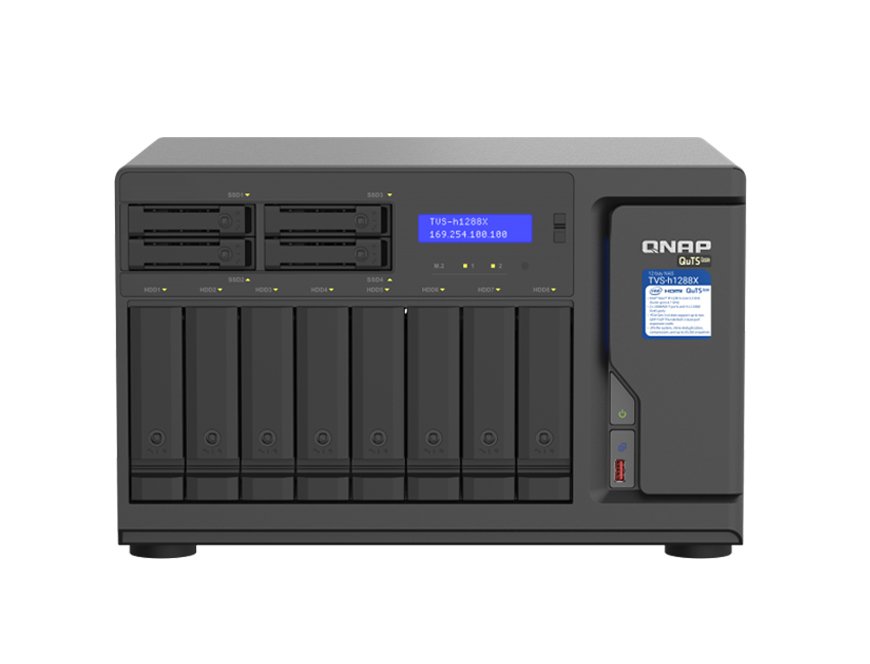

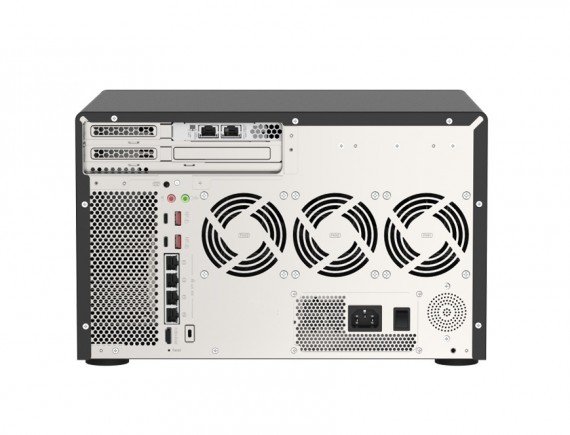

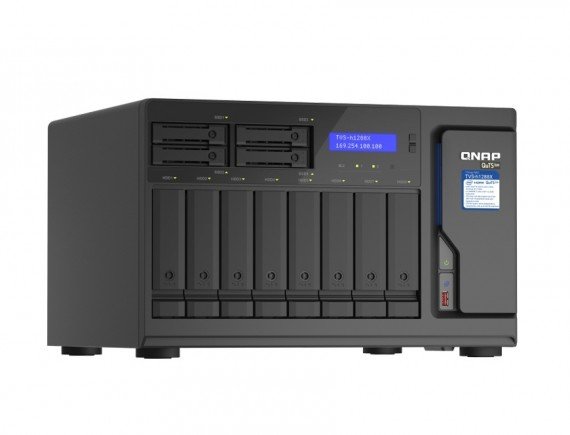

QNAP TVS H1288X W1250 16G

CPU : Intel® Xeon® W-1250 6-core/12-thread processor, up to 4.7 GHz

CPU Architecture : 64-bit x86

Graphic Processors : Intel® UHD Graphics P630

Floating Point Unit : YES

Encryption Engine : YES (AES-NI)

Hardware-accelerated Transcoding : YES

System Memory : 16 GB ECC UDIMM DDR4 (2 x 8 GB)

Maximum Memory : 128 GB (4 x 32 GB)

Memory Slot : 4 x Long-DIMM DDR4

Flash Memory : 5GB (Dual boot OS protection)

Drive Bay : 8 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility :

- 3.5-inch bays:

- 3.5-inch SATA hard disk drives

- 2.5-inch SATA hard disk drives

- 2.5-inch SATA solid state drives

- 2.5-inch bays:

- 2.5-inch SATA solid state drives

Hot-swappable : YES

M.2 Slot : 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots

SSD Cache Acceleration Support : YES

2.5 Gigabit Ethernet Port (2.5G/1G/100M) : 4 (also support 10M)

5 Gigabit Ethernet Port (5G/2.5G/1G/100M) : Optional via an adapter

10 Gigabit Ethernet Port : 2 x 10GBASE-T (10G/1G)

25 Gigabit Ethernet Port : Optional via an adapter

Wake on LAN (WOL) : YES (Only the 2.5GbE port)

Jumbo Frame : YES

Thunderbolt Port : Optional via the QXP-T32P 2-port Thunderbolt 3 PCIe adapter

PCIe Slot :

- 3

- Slot 1: PCIe Gen3 x8

- Slot 2: PCIe Gen3 x4

- Slot 3: PCIe Gen3 x4

USB 3.2 Gen 2 (10Gbps) Port : 2 x Type-C ; 3 x Type-A

HDMI Output : 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz)

Audio Input : - (No longer available on units manufactured on or after 2021/1/1)

Audio Output : - (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1)

Form Factor : Tower

LED Indicators : System status, LAN, USB, Disk 1~12, M.2 SSD 1~2

LCD Display/ Button :YES

Buttons : Power, Reset, USB Auto Copy

Dimensions (HxWxD) : 234.6 × 369.9 × 319.8 mm

Operating temperature 0 - 40°C (32°F - 104°F)

Storage Temperature : -20 - 70°C (-4°F - 158°F)

Relative Humidity : 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
