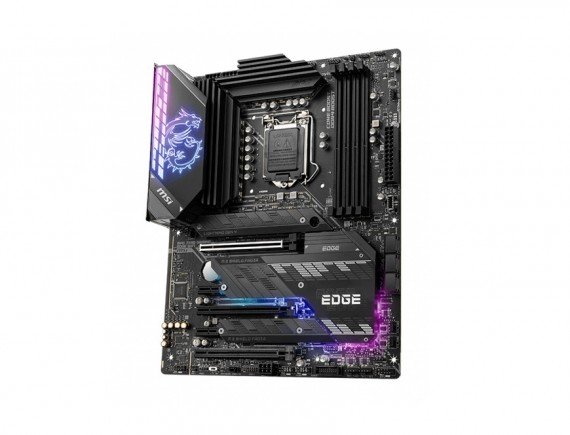

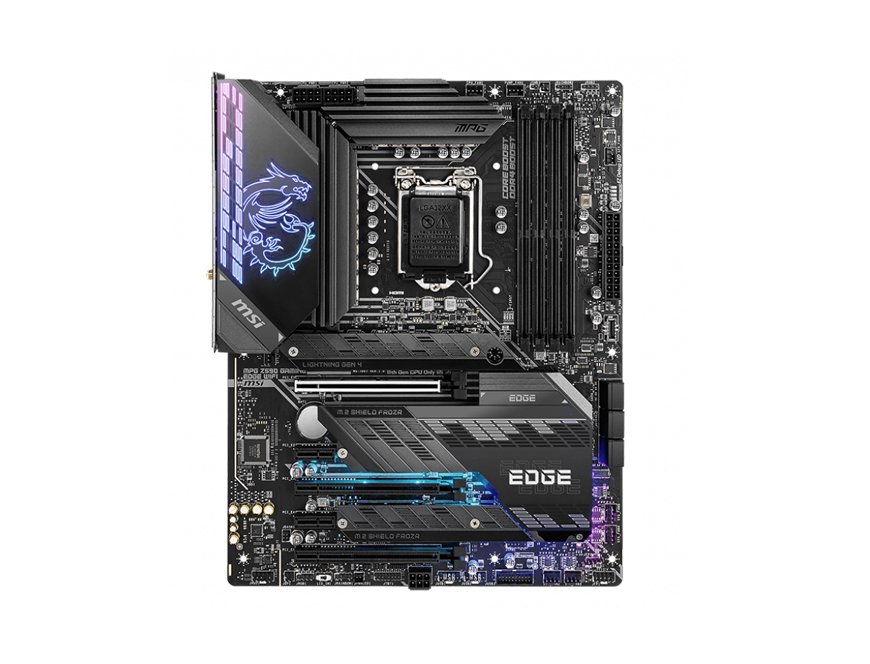

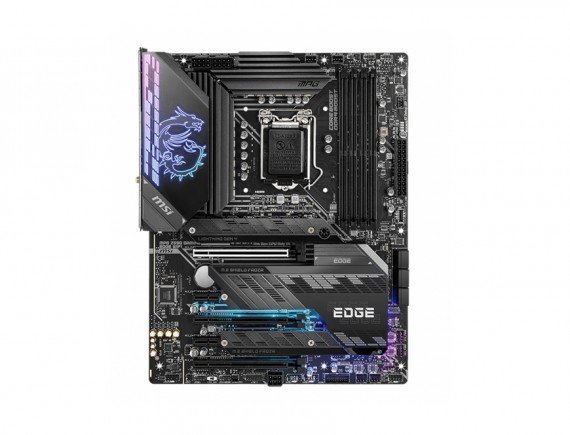

MSI MPG Z590 GAMING EDGE WIFI

PROCESSOR

Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors 1

Processor socket LGA1200

CHIPSET

Intel Z590 Chipset

MEMORY

4x DDR4 memory slots, support up to 128GB1

Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)

Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)

Max overclocking frequency:

1DPC 1R Max speed up to 5333 MHz

1DPC 2R Max speed up to 4700+ MHz

2DPC 1R Max speed up to 4400+ MHz

2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memorySupports Intel Extreme Memory Profile (XMP)

EXPANSION SLOTS

3x PCIe x16 slots

Support x16/x4/x4

PCIE1 (From CPU)

Supports up to PCIe 4.0 for 11th Gen Intel CPU

Supports up to PCIe 3.0 for 10th Gen Intel CPU

PCI

E3 & PCI_E5 (From Z590 Chipset)

Support up to PCIe 3.0

2x PCIe 3.0 x1 slots (From Z590 Chipset)

ONBOARD GRAPHICS

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz1/ 2

1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1/ 2

Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.

MULTI-GPU

Supports AMD CrossFire Technology
