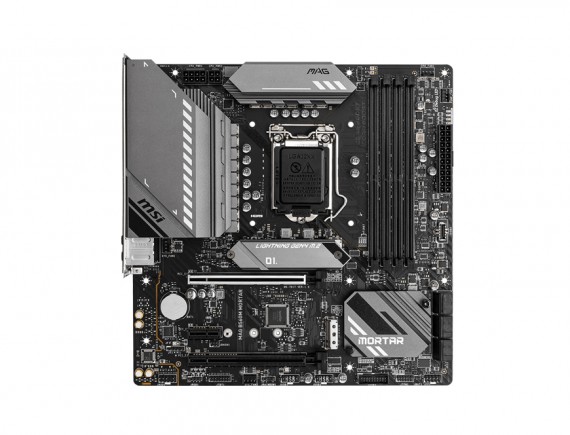

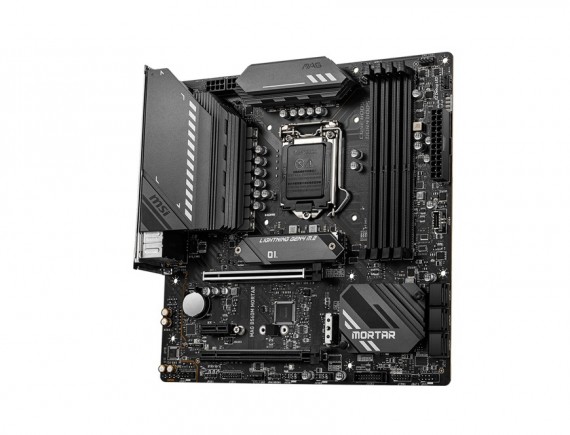

MSI MAG B560M MORTAR

PROCESSOR

Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors 1

Processor socket LGA1200

CHIPSET

Intel B560 Chipset

MEMORY

4 x DDR4 memory slots, support up to 128GB 1

Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)

Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)

Max overclocking frequency:

1DPC 1R Max speed up to 5066+ MHz

1DPC 2R Max speed up to 4600+ MHz

2DPC 1R Max speed up to 4266+ MHz

2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel Extreme Memory Profile (XMP)

EXPANSION SLOT

2x PCIe x16 slots

Support x16/ x4

PCIE1 (from CPU)

Support up to PCIe 4.0 for 11th Gen Intel CPU

Support up to PCIe 3.0 for 10th Gen Intel CPU

PCI

E3 (From B560 chipset)1

Support up to PCIe 3.0

1x PCIe 3.0 x1 slot

PCIE2 (From B560 chipset)

PCI

E3 will be unavailae when installing M.2 SSD in M22 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI

E3 and set x2 for M2_2 in BIOS.

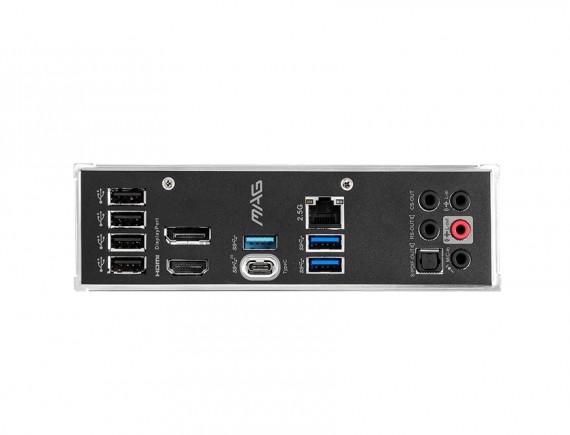

ONBOARD GRAPHICS

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

Availae only on processors featuring integrated graphicsGraphics specifications may vary depending on the CPU installed.

MULTI-GPU

Supports 2-Way AMD CrossFire Technology
