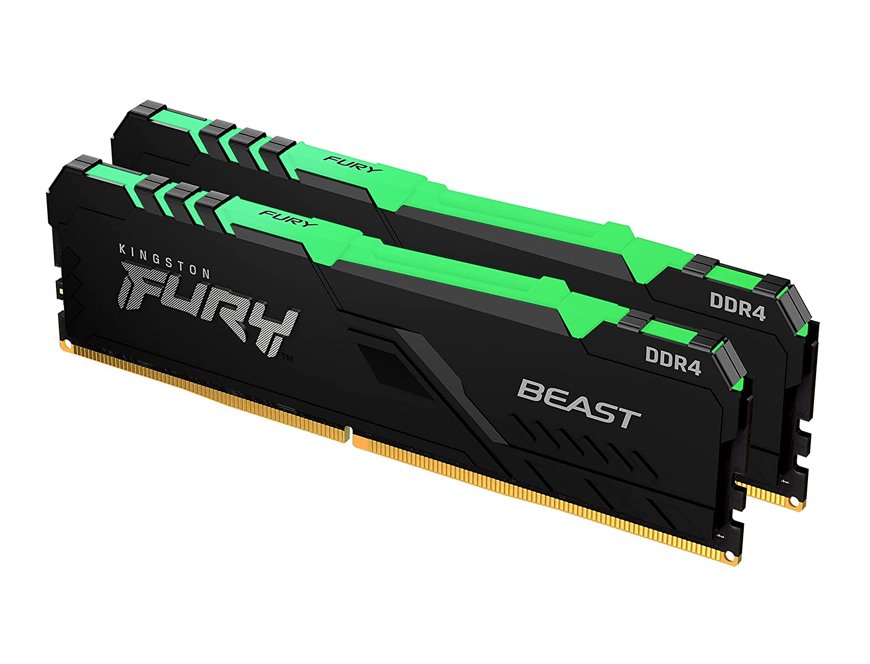

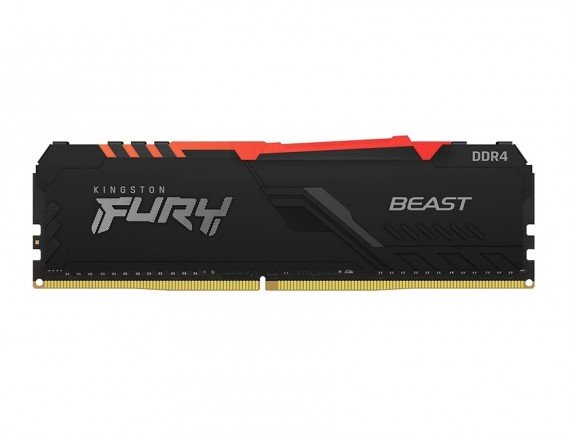

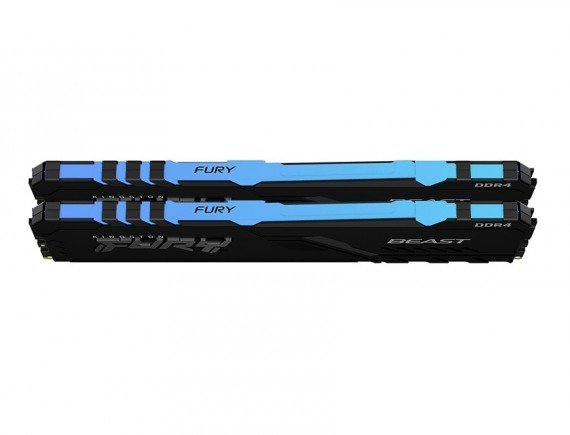

KINGSTON 32GB 3200MHz DDR4 CL16 DIMM (Kit of 2) 1Rx8 Kingston FURY BEAST RGB

DESCRIPTION

HyperX Fury Beast KF432C16BBAK2/16 is a kit of two 1G x 64-bit (8GB)

DDR4-3200 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory

module, based on eight 1G x 8-bit FBGA components per module.

Each module kit supports Intel® Extreme Memory Profiles (Intel®

XMP) 2.0. Total kit capacity is 16GB. Each module has been tested

to run at DDR4-3200 at a low latency timing of 16-18-18 at 1.35V.

The SPDs are programmed to JEDEC standard latency DDR4-2400

timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact

fingers.

FEATURES

• Power Supply: VDD = 1.2V Typical

• VDDQ = 1.2V Typical

• VPP = 2.5V Typical

• VDDSPD = 2.2V to 3.6V

• On-Die termination (ODT)

• 16 internal banks; 4 groups of 4 banks each

• Bi-Directional Differential Data Strobe

• 8 bit pre-fetch

• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

• Height 1.624” (41.24mm), w/heatsink
