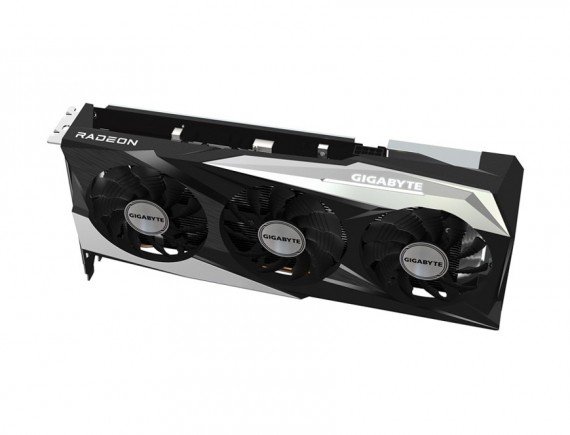

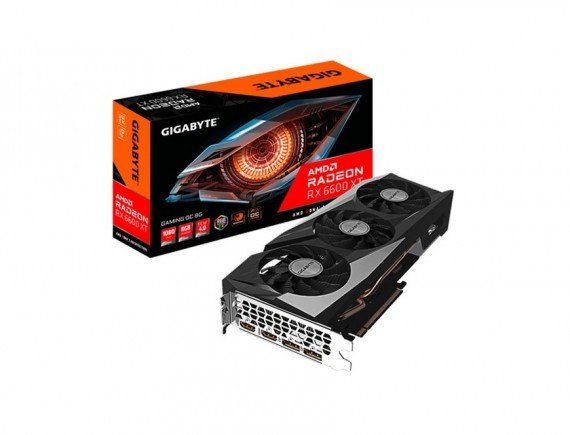

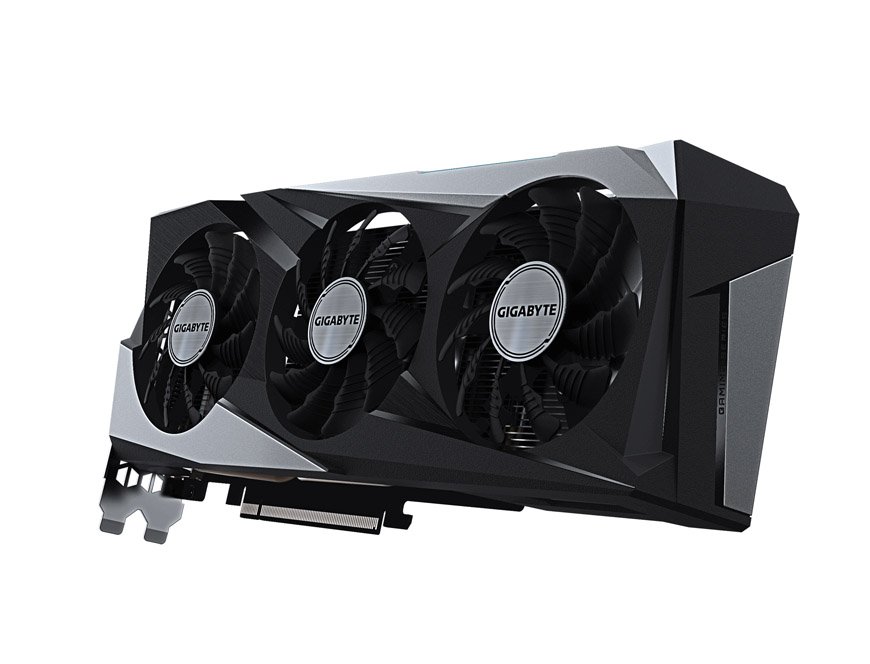

GIGABYTE Radeon™ RX 6600 XT GAMING OC 8G

Graphics Processing Radeon™ RX 6600 XT

Core Clock Boost Clock* : up to 2593 MHz (Reference card: 2589 MHz)

Game Clock* : up to 2382 MHz (Reference card: 2359 MHz)

Stream Processors 2048

Memory Clock 16000 MHz

Memory Size 8 GB

Memory Type GDDR6

Memory Bus 128 bit

Memory Bandwidth (GB/sec) 256 GB/s

Card Bus PCI-E 4.0 x 8

Digital max resolution 7680x4320

Multi-view 4

Card size L=282 W=115 H=50 mm

PCB Form ATX

DirectX 12 Ultimate

OpenGL 4.6

Recommended PSU 500W

Power Connectors 8 pin*1

Output DisplayPort 1.4a *2 HDMI 2.1 *2

Accessories Quick guide

 Note

 “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

 “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
