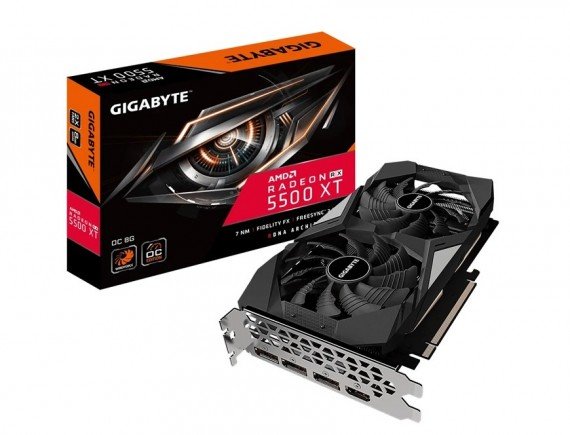

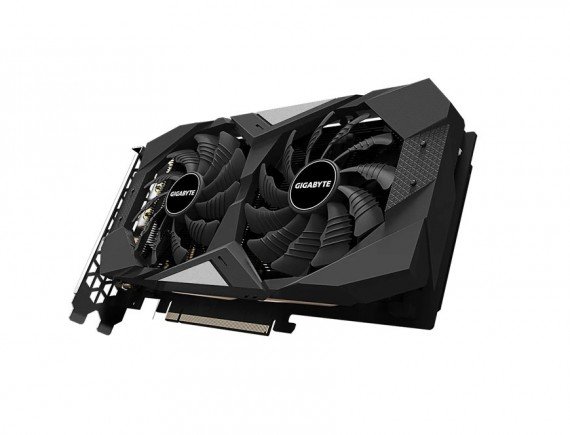

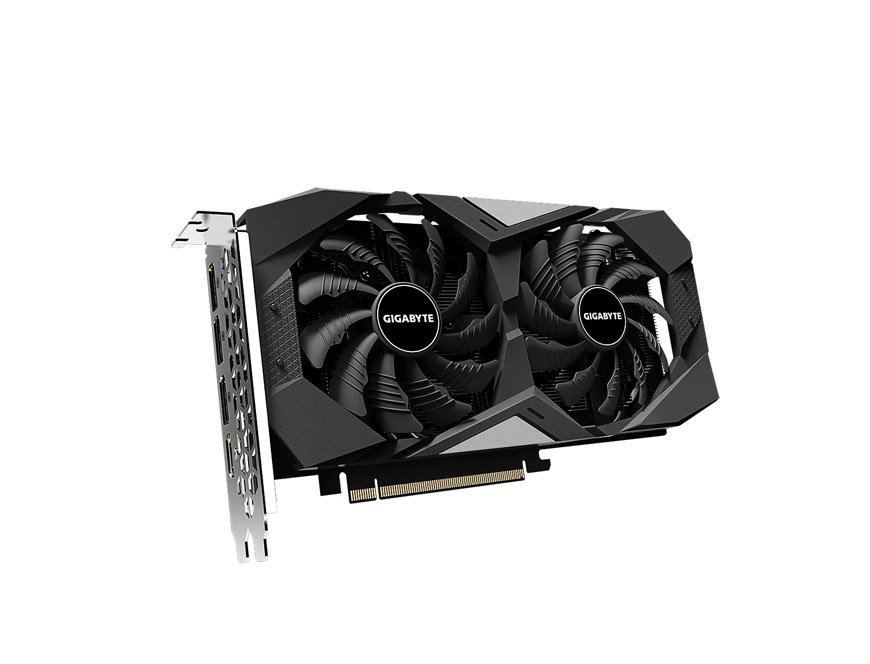

GIGABYTE Radeon™ RX 5500 XT OC 8G (rev. 1.0) VGA GV-R55XTOC-8GD

Chipset Radeon™ RX 5500 XT

Core Clock Boost Clock* : up to 1845 MHz

Game Clock* : up to 1733 MHz (Reference card: 1717 MHz)

Stream Processors 1408

Process Technology 7 nm

Memory Clock 14000 MHz

Memory Size 8 GB

Memory Type GDDR6

Memory Bus 128 bit

Memory Bandwidth (GB/sec) 224 GB/s

Card Bus PCI-E 4.0

Digital max resolution 7680x4320

Multi-view 4

Card size L=225 W=119 H=40 mm

PCB Form ATX

DirectX 12

OpenGL 4.6

Power requirement 450W

Power Connectors 8 Pin*1

Output DisplayPort 1.4 *3 HDMI 2.0b *1

Accessories Quick Guide

Note

* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
