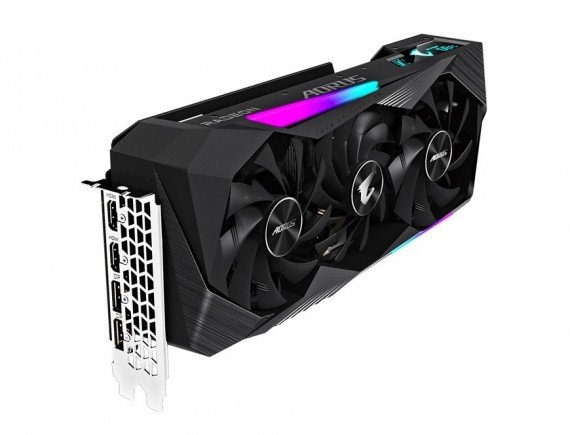

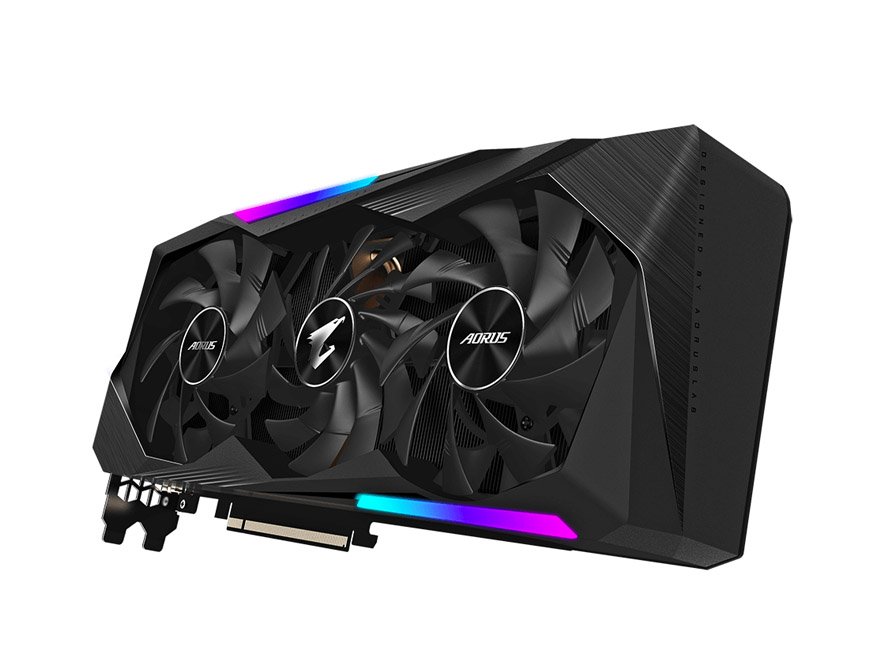

GIGABYTE AORUS Radeon™ RX 6800 MASTER 16G

Chipset Radeon™ RX 6800

Core Clock Boost Clock* : up to 2190 MHz (Reference card: 2105 MHz)

Game Clock* : up to 1980 MHz (Reference card: 1815 MHz)

Stream Processors 3840

Process Technology 7 nm

Memory Clock 16000 MHz

Memory Size 16 GB

Memory Type GDDR6

Memory Bus 256 bit

Memory Bandwidth (GB/sec) 512 GB/s

Card Bus PCI-E 4.0 x 16

Digital max resolution 7680x4320

Multi-view 4

PCB Form ATX

DirectX 12 Ultimate

OpenGL 4.6

Power requirement 650W

Power Connectors 8 pin*2

Output DisplayPort 1.4a *2 HDMI 2.1 *2

Accessories 1?. Quick guide 2. 4-year warranty registration 3. Metal sticker

Note

“Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

“Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
