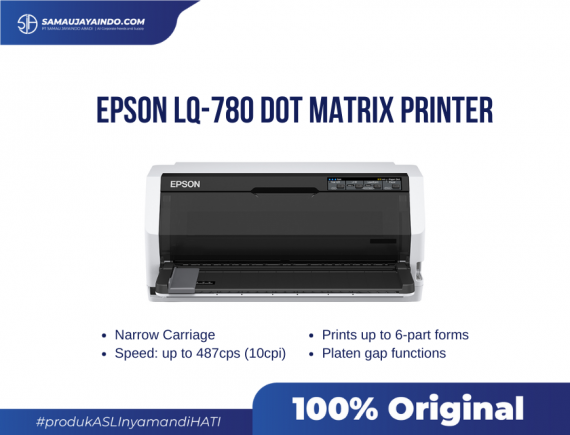

Epson LQ-780 Dot Matrix Printer

Feature :
Narrow Carriage
Speed: up to 487cps (10cpi)
Prints up to 6-part forms
Platen gap functions
1 original + 6 copies

Print Method:
Impact dot matrix
Control Panel:
4 Buttons and 6 LEDs
Print Direction:
Bi-directional with logic seeking
Number of Pins in Head:
24 pins
Control Code:
ESC/P2, IBM-PPDS

Reliability:
MVBF:
40 million lines (except print head)
MTBF:
20,000 Hrs POH (25% Duty)
Printhead Life:
400 million strokes/wire

Paper Path:
Manual Insertion:
Front in, Front out
Push Tractor:
Rear in, Front out

Supported OS:
Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11
Utility:
Epson Status Monitor 3: Microsoft WIndows® XP / Vista / 7 / 8 / 10 / 11
Epson Setting Utility: Microsoft Windows® XP / Vista / 7 / 8 / 10 / 11

Interface:
Standard:
Bi-directional Parallel (IEEE 1284 Nibble mode support), USB 2.0 (Full Speed Mode)

Paper Media:
Cut Sheet (Single Sheet):
Width: 90 - 304.8 mm | 3.5 - 12”
Length: 70 - 420 mm | 2.8 - 16.5"
Thickness: 0.065 - 0.19 mm | 0.0025 - 0.0074"
Cut Sheet (Multi-part Sheet):
Width: 90 - 304.8 mm | 3.5 - 12”
Length: 70 - 420 mm | 2.8 - 16.5"
Thickness: 0.12 - 0.49 mm | 0.0047 - 0.0019"
Envelope (No.6):
Width: 165 mm | 6.5"
Length: 92mm | 3.6"
Thickness: 0.16 mm | 0.063"
Envelope (No.10):
Width: 241 mm | 9.5"
Length: 105 mm | 4.1"
Thickness: 0.16 mm | 0.063"
Continuous Paper (Single Sheet):
Width: 101.6 - 304.8 mm | 4 - 12"
Length: 76.2 - 558.8 mm | 3.0 - 22.0"
Thickness: 0.65 - 0.15 mm | 0.002 - 0.005"
Continuous Paper (Multi-part Forms):
Width: 101.6 - 304.8 mm | 4 - 12"
Length: 76.2 - 558.8 mm | 3.0 - 22.0"
Thickness: 0.12 - 0.49 mm | 0.0047 - 0.019"
Card:
Width: 90 - 200 mm | 3.54 - 7.8"
Length: 90 - 200 mm | 3.54 - 7.8"
Thickness: 0.22 mm | 0.087"
Roll Paper:
Width: 213 - 219 mm | 8.83 - 8.62"
Thickness: 0.07 - 0.09 mm | 0.002 -0.005"
Line Spacing:
4.23mm (1/6”) or programmable in increments of 3.175mm (1/8”) or 0.0706mm (1/360”)
